Applications
- All industrial applications including V-Flat Drives, particularly where space, weight and horse power capacity are critical.
- Due to it’s composite multipurpose construction these belts resist oils, heat, ozone, sunlight, weather and aging. Hence can be used in all open drives.
Features
- Designed to enhance power transmission efficiency by providing even stress over tension member with a special sectional shape of narrower top width and taller height, special raw materials and production technique.
- Specially designed cords enhance durability and length stability.
- Excellent in resistance against heat, oil and wear.
- Safe use is ensured by preventing static electricity.
- Enhances power transmission efficiency by reducing slip.
- Due to it’s ‘narrow’ cross-sections, these belts can transmit upto three times the horse power of the classical wrapped typed belts, in the same amount of drive space.
- Available in 3V (9N), 5V (15N), 8V (25N), SPZ, SPA, SPB, SPC

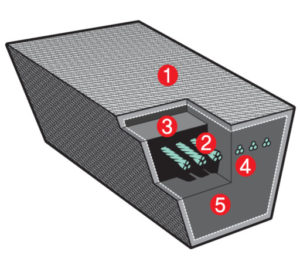

| Construction | Functions | Materials |
|---|---|---|
| 1. Cover fabric | Protects the inner parts of the belt from strong abrasion on the pulley groove and protects the core of the belt from oil, dirt and heat. | Cotton / Synthetic fabric |
| 2. Tension member | Strongly Bonded to the body for best result in equal load distribution. Also helps in precluding bending stress. | Polyester, Aramid |
| 3. Top compression rubber | Top compression rubber Maintains belt shape (upper) | NR, CR |
| 4. Adhesive rubber | Supports and protects tension member adhesion | NR, CR |
| 5. Bottom compression rubber | Maintains belt shape (lower) | NR, CR |
Products and Specifications
Click ‘Inquire Now’ to send us your requirement
| Product Type | Top Width | Thickness | Angle | Size (inches) | Size (mm) | Factory Mark | |
|---|---|---|---|---|---|---|---|
| 3V (9N) | 9.5 | 8.0 | 40° | 16" - 200" | 406 - 5060 | La | Inquire Now! |
| 5V (15N) | 16.0 | 13.5 | 40° | 44" - 394" | 1100 - 10008 | La | Inquire Now! |
| 8V (25N) | 25.5 | 23.0 | 40° | 75" - 600" | 1905 - 15240 | La | Inquire Now! |
| SPZ | 10.0 | 8.0 | 40° | 16" - 200" | 406 - 5080 | La | Inquire Now! |
| SPA | 13.0 | 10.0 | 40° | 23" - 200" | 600 - 5080 | La | Inquire Now! |
| SPB | 17.0 | 14.0 | 40° | 44" - 394" | 1100 - 10008 | La | Inquire Now! |
| SPC | 22.0 | 18.0 | 40° | 71" - 600" | 1800 - 15240 | La | Inquire Now! |
