Industrial Timing Belts incorporate the merits of belt transmission, chain transmission and gear transmission, offering accurate and smooth transmission, low noises, no slippage and very small friction losses. These belts transmit high transmission power and speed ratio is up to 10 with the transmission limiting velocity reaching 50 meters per second. These belts are resistant to oil and moisture, they do not need lubrication and are applicable to multi-shaft transmission.

Features

  • Solves potential problems caused by using a conventional metal chain such as :

~No decrease in horsepower at high-speed
~Easily designed to span the distance between the drive pulleys and maintain constant tension.

  • Prevents belt elasticity by using glass fibers for the tension member.
  • Excellent in resistance against heat, oil and wear.
  • Guarantees high-power transmission efficiency under driving conditions of
    high-speed and severe temperature fluctuation.
  • Shows stable performance at high-speed rotation.

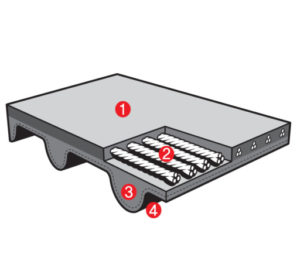

Construction Functions Materials
1 Rear Rubber Protects tension member CR, HNBR
2 Tension member Primary material for transferring power Glass Fiber
3 Teeth rubber Protects tension member, maintains belt shape CR, HNBR
4 Bottom fabric Maintains belt and teeth shape Nylon
CR : Chloroprene Rubber / EPDM : Ethylene Propylene Diene Monomer



Products and Specifications

Click ‘Inquire Now’ to send us your requirement

Product TypeWidth Code
MXL012019025Inquire Now!
XL025031037Inquire Now!
L050075100Inquire Now!
H075100150200Inquire Now!
XH200300400Inquire Now!
XXH200300400500Inquire Now!
T2.54610Inquire Now!
T5/AT56101625Inquire Now!
T10/AT1016253250Inquire Now!
T20/AT20325075100Inquire Now!
3M/S3M6915Inquire Now!
5M/S4.5M/S5M9152530Inquire Now!
8M/S8M30405085Inquire Now!
14M/S14M5585115170Inquire Now!
20M7085115170230290340Inquire Now!
